    • Welding Machines

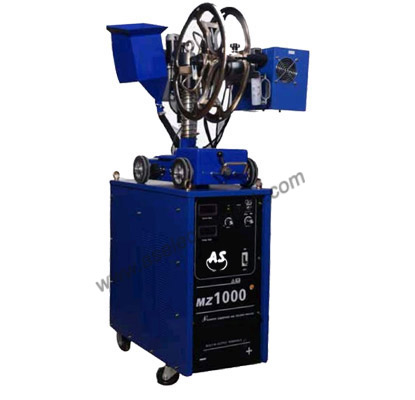

    SAW Welding Machine


    Parameters MZ630 MZ1000 MZ1250
    Input Voltage AC 380+-15% AC 380+-15% AC 380+-15%
    Frequency 50/60 50/60 50/60
    Rated Input Current(A) 53.1 84.3 105
    No Load Voltage(V) 72 72 80
    Output Current Range(A) 50-630 100-1000 100-1250
    Rated Output Voltage (V) 44 44 44
    ARC FORCE CURRENT RANGE(A) 0-100 0-100 0-100
    Duty Cycles(%) 100 100 100
    No-Load Loss(W) 300 300 300
    Efficiency(%) 85 85 85
    Power Factor 0.93 0.93 0.93
    Insulation Grade F F F
    Housing Protection Grade IP21 IP21 IP21
    Net Weight(KG) 54 86 90
    Packing Dimensions(mm) 780 x 435 x 760 800 x 455 x 785 800 x 455 x 785

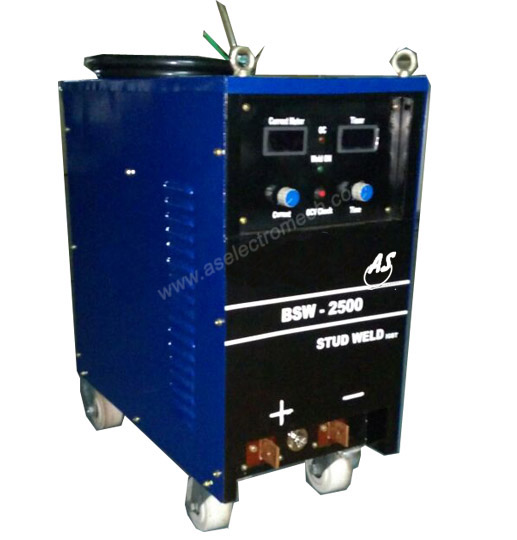

    Stud Welding Machine

    Model KDA 1250i KDA 2500i KDA 3150i
    Stud Range 2-14mm(RD M16) 2-28mm 2-32mm
    Welding Current 200-1250A 200-2500A 200-3150A
    Welding Time 1-3000ms 1-3000ms 1-3000ms
    Input Power 220/380/400/415/440V
    50/60Hz, 3Ph    		 220/380/400/415/440V
    50/60Hz, 3Ph    		 220/380/400/415/440V
    50/60Hz, 3Ph
    Power Supply Cable 4 Wire 3 x 10 + 1 x 6
    5 Meter    		 3 x 16 + 1 x 10
    5 Meter    		 3 x 25 + 1 x 10
    5 Meter
    Rated Input Power 60kVA 110kVA 138kVA
    Rated Input Current 72A 144A 182A
    Air Switch 80A 160A 200A
    Insulation IP21 IP21 IP21
    Dimension 560mm x 450mm x 540mm 750mm x 450mm x 810mm 750mm x 450mm x 990mm
    Weight - Machine 46kg 95kg 145kg
    Weight - Accessories 22kg 55kg 65kg

    Shear Connector

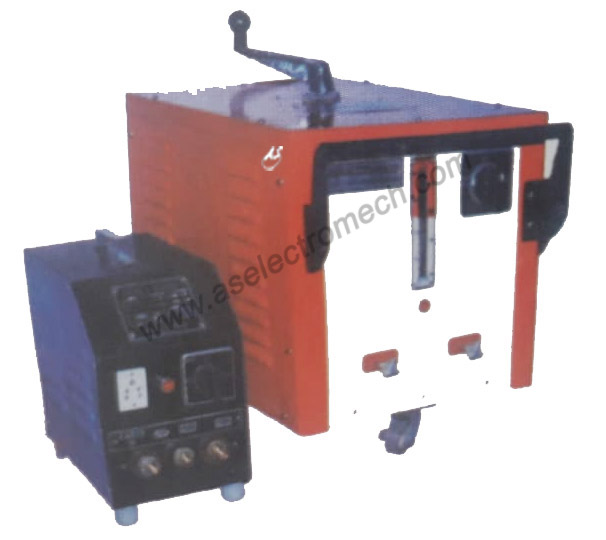

    Transformer Welding Machine


    Model AS1-200 AS1-315 AS1-400 AS1-500
    Power voltage (V) 380/220/50 380/50 380/50 380/50
    Rated Input Capacity (Kva) 14.4 22.8 27.7 37.2
    Rated duty cycle (%) 35 35 35 35
    Open Circuit Voltage(V) 63 65 64 67
    Rated output current(A) 200 315 400 500
    Rated no-load voltage(V) 28 32.6 36 40
    Current adjust range(A) 45-200 70-315 85-400 110-500
    Insulation Class F F F F
    Electrode diameter(mm) 2--4 2--6 2.5-7 3.2-8
    Weight(Kg) 60 78 90 106
    Dimension(mm) 524x355x655 572x422x691 572x422x691 630x483x788

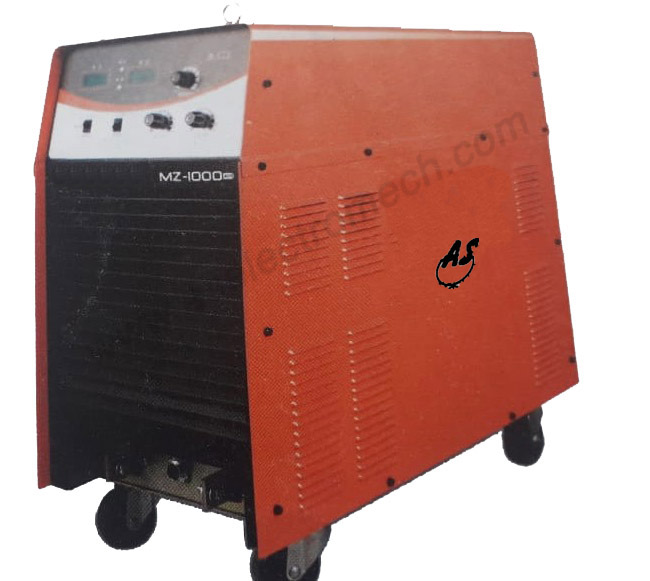

    Saw Automatic Girth Welding 2g Machine

    Parameters MZ630 MZ1000 MZ1250
    Input Voltage AC 380+-15% AC 380+-15% AC 380+-15%
    Frequency 50/60 50/60 50/60
    Rated Input Current(A) 53.1 84.3 105
    No Load Voltage(V) 72 72 80
    Output Current Range(A) 50-630 100-1000 100-1250
    Rated Output Voltage (V) 44 44 44
    ARC FORCE CURRENT RANGE(A) 0-100 0-100 0-100
    Duty Cycles(%) 100 100 100
    No-Load Loss(W) 300 300 300
    Efficiency(%) 85 85 85
    Power Factor 0.93 0.93 0.93
    Insulation Grade F F F
    Housing Protection Grade IP21 IP21 IP21
    Net Weight(KG) 54 86 90
    Packing Dimensions(mm) 780 x 435 x 760 800 x 455 x 785 800 x 455 x 785

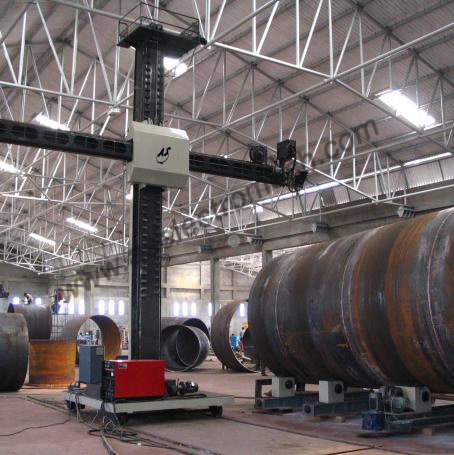

    Column Boom Welding Machine


    1 Type of Machine Column & Boom, Motorized Boogie Type
    2 Machine Model ME/C& M/5065
    3 Vertical Clear Stroke 5000 mm
    4 Horizontal clear stroke 3000 mm
    5 Minimum Height of Boom centre from Rail Top 1300 mm
    6 Maximum Height of Boom centre from Rail Top 6300 mm
    7 Minimum Distance between column centre & Boom Face 750 mm
    8 Maximum Distance between column centre & Boom Face 3250 mm
    9 Horizontal Travel speed of Boom 125 to 1250 mm/min
    10 Vertical Travel speed of Boom 1000 mm/min
    11 Swiveling range for the column base 360 Degree, Manual
    12 A.C. Motor Capacity of Horizontal Drive 1 HP/1415 RPM
    13 A.C. Motor Capacity of Vertical Drive 2 HP/ 1420 RPM
    14 A.C. Motor Capacity of Trolley Drive 2 HP/ 1420 RPM
    15 Rail Distance (Distance between inner faces of Rails) 2000 mm
    16 Boogie Travel Speed 1300 mm/min
    17 Total SAG of Boom (with 250kg) 10 mm (Max.)
    18 Control Panel:- Boom Horizontal movement, Boom Vertical Movement with over load relay, A.C. Fixed speed boom vertical movement. All motors are protected with limit switches, wiring with multi core cable protected with hose pipe and proper clamping with machine
    19 Controls on control Panel:- Boom Forward, Boom Reverse, Boom STOP, Boom UP & DOWN, Boogie Forward & Reverse along with panel remote switch
    20 Operator Console:- Controls on operator console Boom Forward, Boom Reverse, Boom STOP, Boom UP & DOWN, Panel remote switch

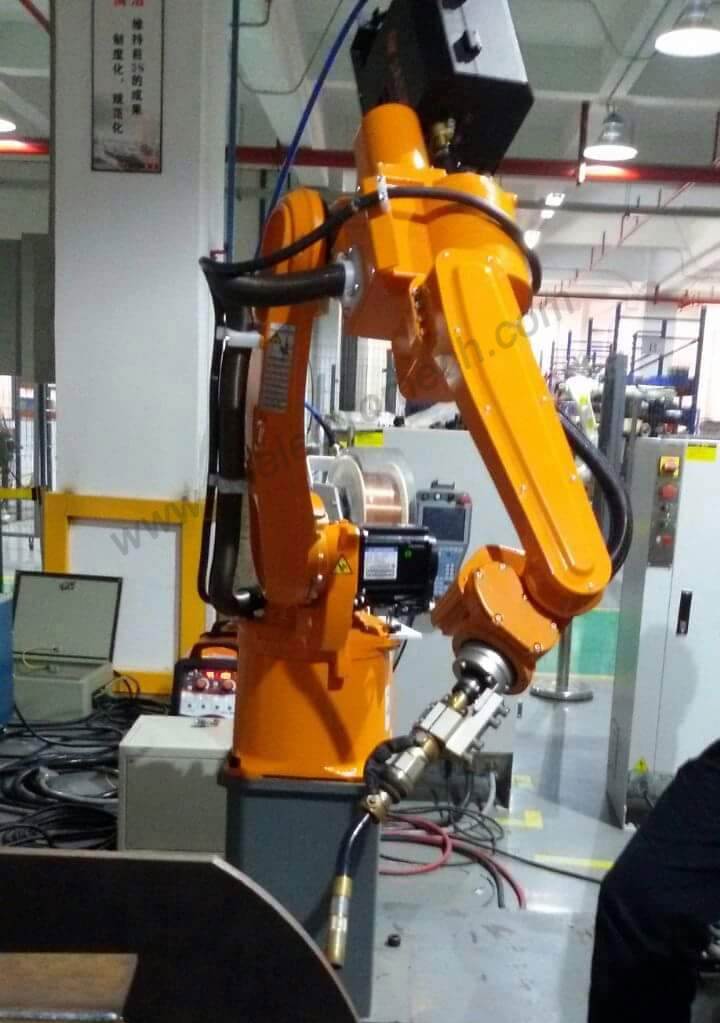

    Robotics Automation Welding Machine

    Model ASW-1650/06
    Arm Form Vertical Multi-joint
    Degree of Freedom of Motion 64xle
    Max.Load 10KG

    Max.Stroke

    		 Arm Rotation +-180°
    Arm horizontal +145~105°
    Arm Vertical +150~ -163°
    Wrist Rotation +-270°
    Wrist Bend +-145°
    Wrist Twist +-360°

    Max.Speed

    		 Arm Rotation 250°/S
    Arm horizontal 250°/S
    Arm Vertical 215°/S
    Wrist Rotation 365°/S
    Wrist Bend 380°/S
    Wrist Twist 700°/S

    Inertia

    		 Wrist Rotation 13N.m
    Wrist Bend 13N.m
    Wrist Twist 7.5N.m

    Inertia Moment

    		 Wrist Rotation 0.45kg.m2
    Wrist Bend 0.45kg.m2
    Wrist Twist 0.14kg.m2
    Repeated Positioning Accuracy +-0.05mm
    Max.Coverage 1650mm
    Max. Synthesis Speed 13700mm/s
    Body Weight 150KG
    Color Orange
    Installation Ground/ Ceiling Suspended

    Installation Environment

    		 Environmental Temprature 0.45°C
    Relative Humidity 35-85% (No Condensation)
    Vibration Below 0.5G
    Other The installation must be away from :
    Flammable or corrosive liquid or gas, Electrical interference sources
    IP Class Wrist : IP 67

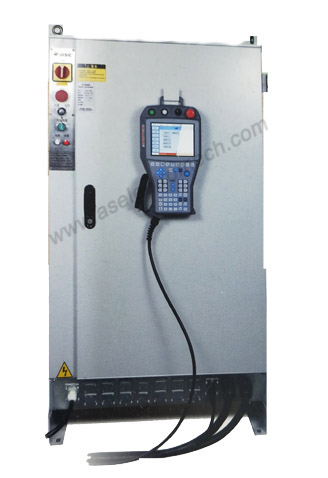

    Corresponding Control Cabinet G05
    Feature Compact Size, High Speed, High Precision, High Scalability, Easy to Operate
    Application Welding, Cutting, Assemble, Moving, Marking, Polishing, Sparying

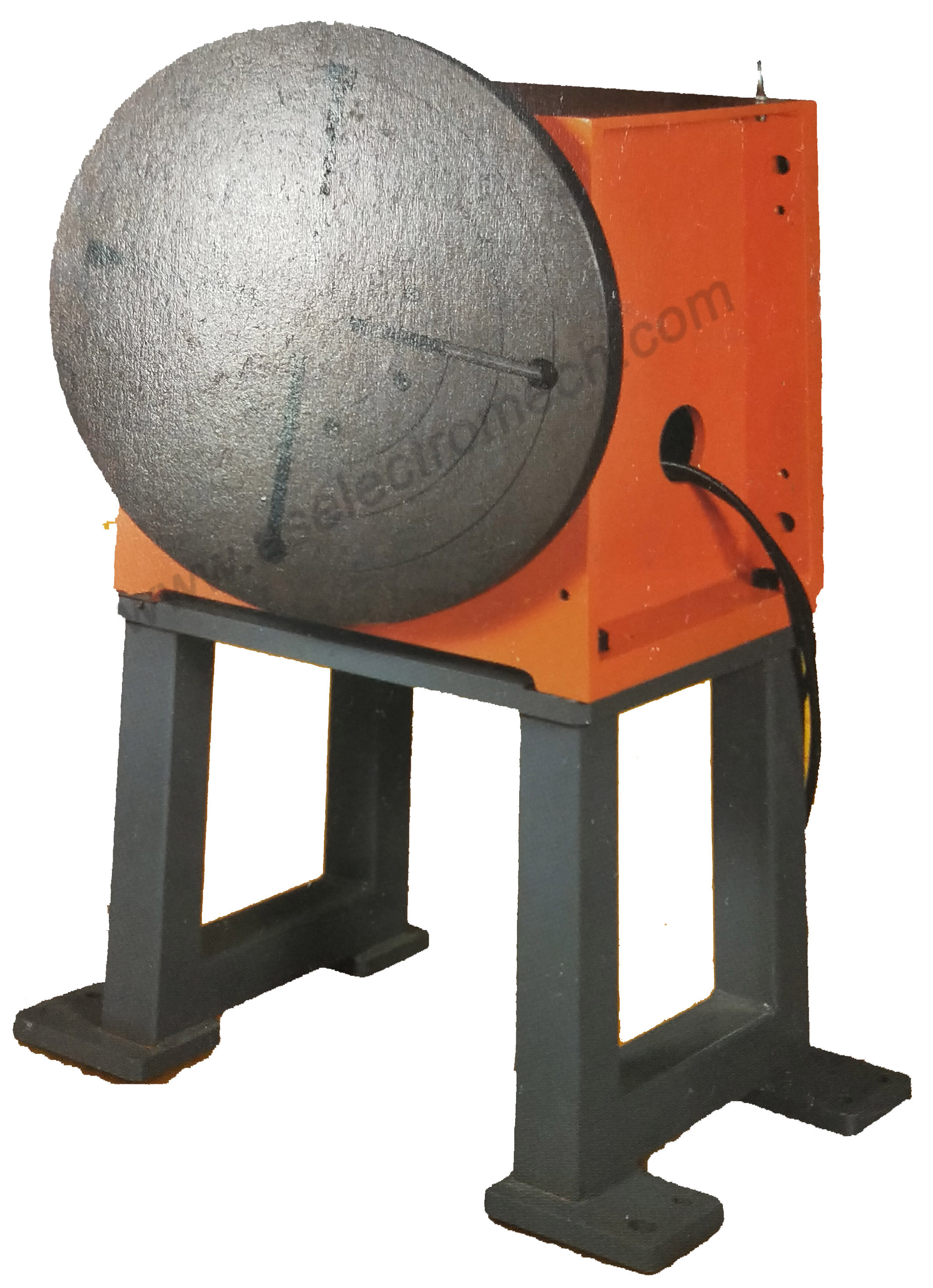

    Positioner Welding Machine


    Model ASW-1 ASW-3 ASW-6 ASW-10 ASW-30 ASW-50 ASW-100
    Rated load capacity (T) 0.1 0.3 0.6 1 3 5 10
    Table rotation speed (rpm) 0.2-2 0.1-1 0.1-1 0.08-0.8 0.07-0.7 0.05-0.5 0.05-0.5
    Table tilting speed (rpm) Manual 0.7 0.7 0.5 0.3 0.3 0.2
    Table diameter(mm) 300 600 800 1200 1400 1500 2000
    Table tilting angle (°) 0-120 0-120 0-120 0-120 0-120 0-120 0-120
    Rotation Motor power (KW) 0.09 0.09 0.37 0.75 1.5 2.2 3
    Tilting motor power (KW) Manual 0.12 0.37 1.5 2.2 3 4
    Max. Eccentricity (mm) 100 100 100 150 150 200 300
    Max. distance of center of gravity 200 200 300 300 300 300 400
    Speed adjusting mode Frequency conversion step-less control
    Power Source Voltage (V) 380 380 380 380 380 380 380

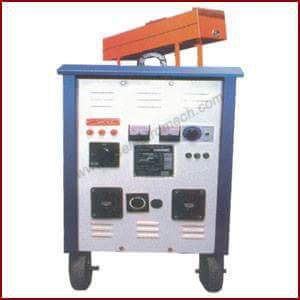

    Thyristor Welding Machine

    Model MTW AS 250 AS 300 AS 400 AS 500 AS 600
    Input (+- 10%) 415 V/3O 415 V/3O 415 V/3O 415 V/3O 415 V/3O
    Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
    Cooling Forced Air Forced Air Forced Air Forced Air Forced Air
    Insulation Class H H H H H
    Primary Current Max.Rated 15 18 22 28 32
    At Max. Rated KVA 1.3 1.8 2.3 2.8 3.2
    Input Cable Section (Cu) 10 mm2 10 mm2 10 mm2 10 mm2 10 mm2
    O.C.V 75-85V 75-85V 75-85V 75-85V 75-85V
    Duty Cycle 60% 60% 60% 60% 60%
    Welding Cable 50 mm2 50 mm2 50 mm2 70 mm2 95 mm2
    Range 10-250A 10-300A 10-400A 10-500A 10-600A
    Protection Class Ip23 Ip23 Ip23 Ip23 Ip23
