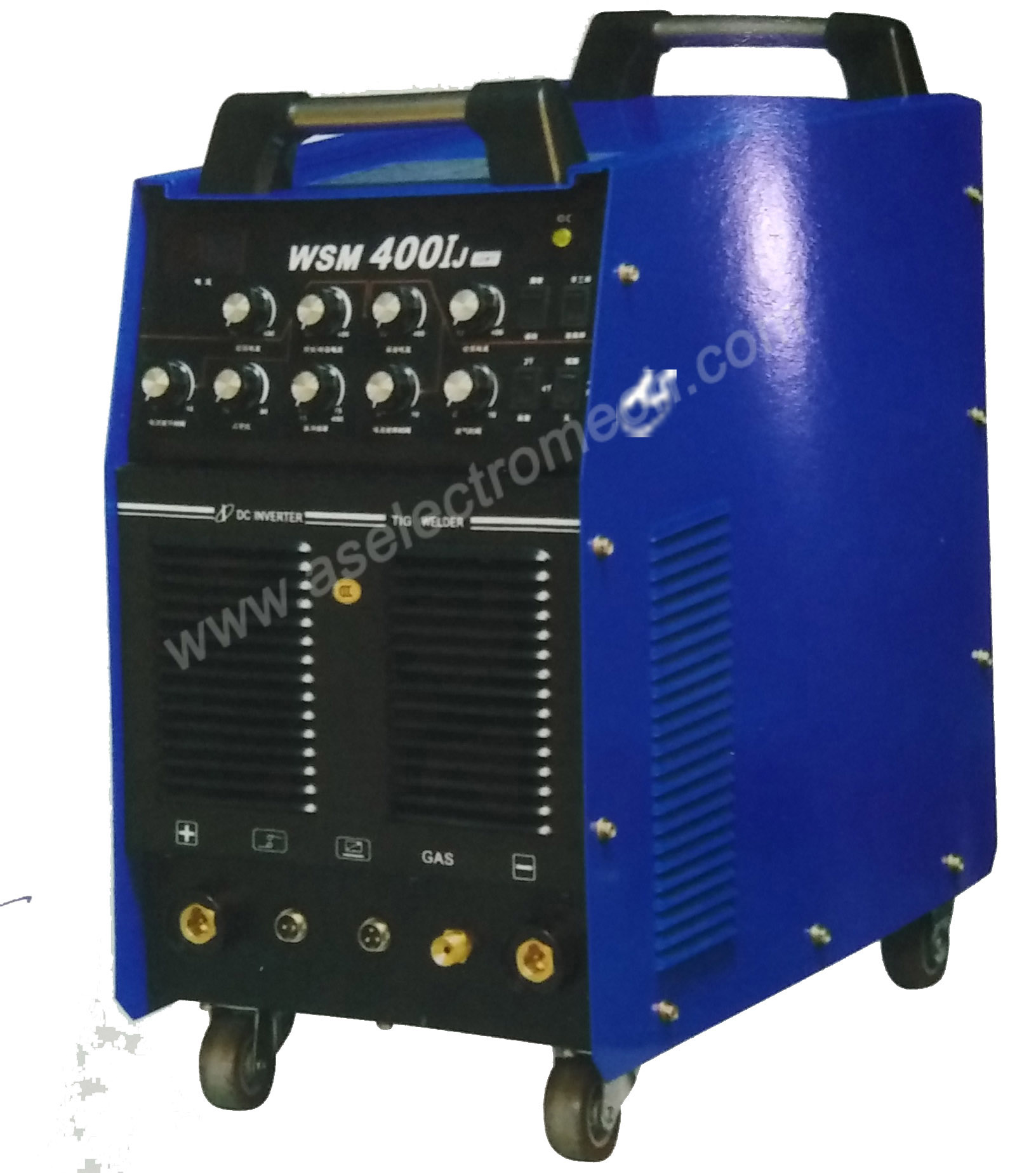

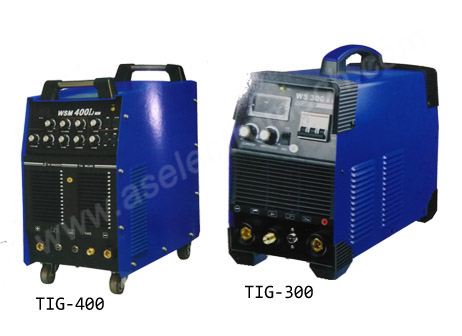

| Parameters | (TIG+ARC) 300 |
(TIG+ARC) 400 |
(TIG+ARC) 400ST |
(TIG+ARC) 400GA |
(TIG+ARC) 4001 |
|---|---|---|---|---|---|
| Inverter Technology | MOSFET | MOSFET | IGBT | IGBT | IGBT Module |
| Input Voltage | AC 380+-15% | AC 380+-15% | AC 220/380+-15% | AC 380+-15% | AC 380+-15% |
| Frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Input Current(A) | 19/13 | 25.7/18.5 | 50/60 23/20 | 27.6/20 | 28/20.5 |
| No Load Voltage(V) | 56 | 60 | 68 | 68 | 70 |
| Output Current Range(A) | 20-300 | 20-400 | 10-300 10-400 | 20-400 | 20-400 |
| Rated Output Voltage (V) | 33/23 | 36/26 | 30/22 34/26 | 36/26 | 36/26 |
| Duty Cycles(%) | 60 | 100 | 100 | 100 | 100 |
| No-Load Loss(W) | 60 | 60 | 100 | 100 | 100 |
| Efficiency | 85 | 85 | 85 | 85 | 85 |
| Power Factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Insulation Grade | F | F | F | F | F |
| Housing Protection Grade | IP21 | IP21 | IP21 | IP21 | IP21 |
| Net Weight(KG) | 16 | 23 | 15.5 | 20 | 30 |
| Packing Dimensions(mm) | 500 x 205 x 370 | 480 x 235 x 410 | 487 x 240 x 385 | 535 x 275 x 460 | 625 x 340 x 616 |

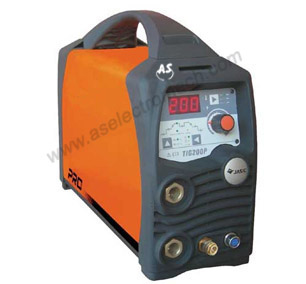

| Parameters | TIG 200P AC/DC | TIG 315P AC/DC | TIG 400P AC/DC |
|---|---|---|---|
| Input Voltage | AC 220+-15% | AC 380+-15% | AC 380+-15% |
| Frequency | 50/60 | 50/60 | 50/60 |
| Rated Input Current(A) | 32.5 | 13.6 | 27 |
| No Load Voltage(V) | 44 | 51 | 60 |
| Output Current Range(A) | 10-200 | 5-315 | 10-400 |
| Rated Output Voltage (V) | 18 | 22.6 | 26 |
| Vale Value Current(%) | 20/80 | 20/80 | Oct-90 |
| Post-Flow | 1 TO TEN | 2 TO TEN | 1 TO TEN |
| Arcing Way | Transfer | Transfer | Transfer |
| Duty Cycles(%) | 60 | 60 | 100 |
| Efficiency(%) | 80 | 85 | 85 |
| Power Factor | 0.73 | 0.93 | 0.93 |
| Insulation Grade | F | F | F |
| Housing Protection Grade | IP21 | IP21 | IP21 |
| Net Weight(KG) | 20 | 35 | 40 |
| Packing Dimensions(mm) | 605 x 445 x 425 | 665 x 475 x 580 | 680 x 485 x 595 |
We A S Electromech Technology manufacture these machines using high quality raw material and MOSFET inverter technology. Our organization holds expertise in providing a wide range of Pulse TIG Welding Machines to the clients. The components are of supreme quality and are meant for optimum performance.
Further, these machines consume less amount of power. We offer these machines with earth clamp, face mask, electrode holder, welding brush and carton box. The machines are equipped with thermostatic control, anti-stick, fan cooled, carrying strap and handle.
