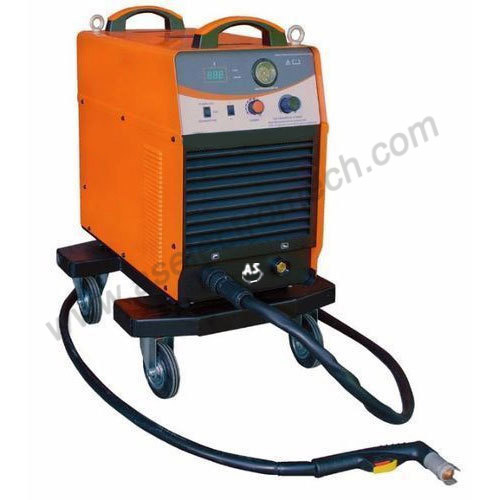

| Parameters | CUT 40 | CUT 60 | CUT 100G | CUT 100 I | CUT 160 I |
|---|---|---|---|---|---|
| Inverter Technology | MOSFET | MOSFET | IGBT | IGBT Module | IGBT Module |
| Input Voltage | AC 220+-15% | AC 380+-15% | AC 380/380+-15% | AC 380+-15% | AC 380+-15% |
| Frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Input Current(A) | 30 | 12 | 17.2 | 23.1 | 44.3 |
| No Load Voltage(V) | 230/td> | 295 | 268 | 268 | 320 |
| Output Current Range(A) | 15-40 | 20-60 | 20-100 | 20-100 | 20-160 |
| Rated Output Voltage (V) | 96 | 104 | 112 | 120 | 144 |
| Duty Cycles(%) | 60 | 60 | 100 | 100 | 100 |
| No-Load Loss(W) | 40 | 60 | 80 | 80 | 100 |
| Efficiency | 85 | 85 | 85 | 85 | 85 |
| Power Factor | 0.73 | 0.93 | 0.93 | 0.93 | 0.93 |
| Recommended Air Pressure | 4-5KG | 4-5KG | 4.5-5.5KG | 4.5-5.5KG | 4.5-5.5KG |
| Insulation Grade | F | F | F | F | F |
| Housing Protection Grade | IP21 | IP21 | IP21 | IP21 | IP21 |
| Cutting Thickness(MM) | 1MM to 8MM | 1MM to 15MM | 1MM to 25MM | 1MM to 30MM | 1MM to 60MM |
| Net Weight(KG) | 8 | 16.5 | 25 | 35 | 60 |
| Packing Dimensions(mm) | 370 x 153 x 232 | 500 x 205 x 370 | 535 x 270 x 460 | 535 x 275 x 460 | 695 x 340 x 610 |

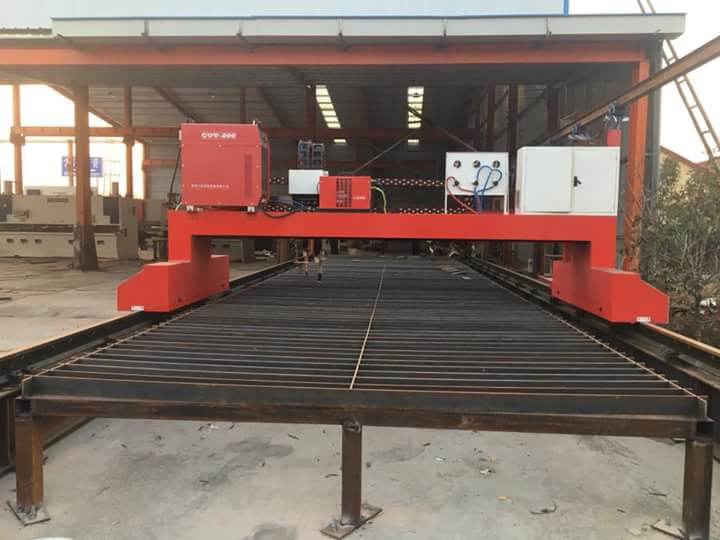

| Model | CNC |
|---|---|
| Rated input voltage (V) | 110/220 |
| Frequency (Hz) | 50/60 |
| Rated input power(W) | 180 |
| Display | LCD 5.7" |
| Range of effective cutting (mm) | X-Axis 1200 Y-Axis: 2000 |
| Travelling speed (mm/min) | 0-6000 |
| Cutting thickness (mm) | 5-45 |
| Cross beam length | 1700 |
| Longitudinal rail length (mm) | 2500 |
| Cutting speed (mm/min) | 0-6000 |
| Cutting software | FastCAM standard version |
| Plasma power source | ACUT 120a |
| Cross beam weight (kg) | 9.3 |
| Host Machine weight (kg) | 26.7 |
| Total machine weight | 70.5 |
