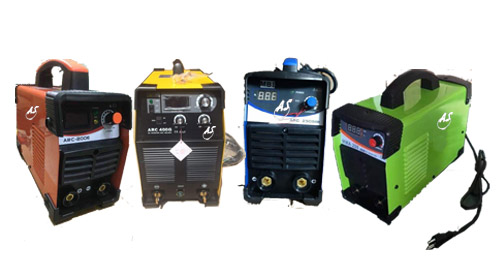

| Parameters | 200 IGBT | 200MOSFET | ARC 250 PR |
|---|---|---|---|
| Inverter Technology | IGBT | MOSFET | MOSFET |
| Input Voltage | AC 220+-15% | AC 220+-15% | AC 220+-15% |
| Frequency | 50/60 | 50/60 | 50/60 |
| Rated Input Current(A) | 32.7 | 43.6 | 45 |
| No Load Voltage(V) | 59 | 58 | 58 |
| Output Current Range(A) | 20-200 | 20-200 | 30-250 |
| Rated Output Voltage (V) | 26.4 | 28 | 30 |
| Duty Cycles(%) | 60 | 60 | 60 |
| No-Load Loss(W) | 40 | 40 | 50 |
| Efficiency | 80 | 80 | 80 |
| Power Factor | 0.73 | 0.73 | 0.73 |
| Insulation Grade | F | F | F |
| Housing Protection Grade | IP21 | IP21 | IP21 |
| Product Model | Input Power Voltage / Phase/ Hertz | rated Output Current/Voltage/Duty Cycle | Input Current @ Rated Output | Output Range | Dimension LxWxH (mm/inch) | Weight(kg/lb) |
|---|---|---|---|---|---|---|
| ARC 400 | Three Phase 380V+_20% 50/60Hz |
400A/36V/60% | 28A | 20-400A | 576 x 297 x 557 22.6x11.7x21.9 |
43/95 |
| ARC 400B | 400A/36V/60% | 28A | 20-400A | 501 x 232 x 495 19.6x9.1x19.4 |
26/57.4 | |
| ARC 400II | 400A/36V/60% | 28A | 20-400A | 576 x 297 x 557 22.6x11.7x21.9 |
43/95 | |
| ARC 500 | 500A/40V/100% | 38A | 20-500A | 636 x 322 x 582 25x12.6x22.8 |
50/110.4 | |
| ARC 630 | 630A/44V/100% | 52A | 50-630A | 686 x 322 x 584 25x12.6x22.9 |
58/128.1 |

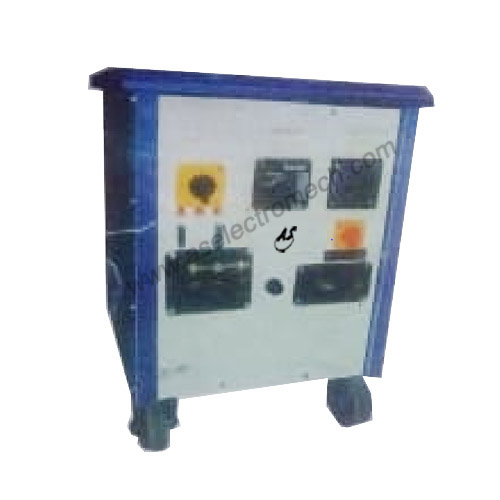

| Model | AS 300 | AS 400 | AS 500 | AS 600 |
|---|---|---|---|---|
| Input (+_10%) | 415 V/30 | 415 V/30 | 415 V/30 | 415 V/30 |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Cooling | Forced Air | Forced Air | Forced Air | Forced Air |
| Insulation Class | H | H | H | H |
| Primary Current Max.Rated | 23A | 28A | 35A | 42A |
| At Max Rated KVA | 2.0 | 2.5 | 3.0 | 3.5 |
| O.C.V | 65/80V | 65/80V | 65/80V | 65/80V |
| Input Cable Section(Cu) | 10mm2 | 10mm2 | 16mm2 | 16mm2 |
| Setting Range | 5-300A | 30-400A | 50-500A | 50-600A |
| Duty Cycle | 60% | 60% | 60% | 60% |
| Welding Cable Section (Cu) | 50mm2 | 50mm2 | 70mm2 | 95mm2 |
| Protection Class | Ip23 | Ip23 | Ip23 | Ip23 |
