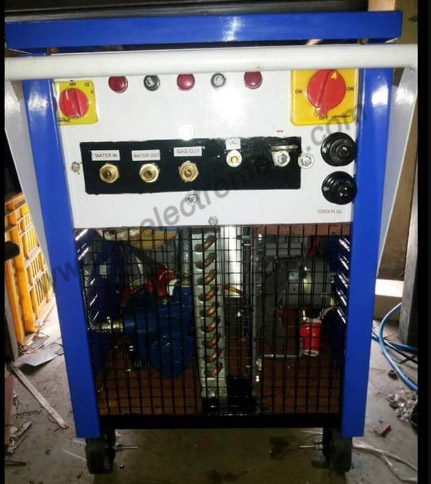

Model | ASW-10 | ASW-20 |
---|---|---|
Main Voltage (V) | Single Phase 220+_10% / 50Hz | |
Cooling capacity (Kw) | 1.5(1L/min) | 1.5(1L/min) |
Motor (W) | 260 | 260 |
Duty cycle | 100% | 100% |
Max Pressure | 3BAR / 60Hz(30m/60Hz) | 3BAR / 60Hz(30m/60Hz) |
Tank (L) | 9 | 26 |
Flow rate | 8.5/min at 6m/H | 8.5/min at 6m/H |
Operation(°C) | -20-60 | -20-60 |
Radiator | AL-radiator | 2R Cu36x40cm |
Dimension LxWxH (mm/inch) | 485x273x360/19.1x10.7x14.1 | 720x390x520/28.3x15.3x20.5 |
Net weight(kg/lb) | 13/28.7 | 32/70.6 |
We A S Electromech Technology are enagaged in manufacturing, exporting & servicing a wide range of HF Unit to our prestigious clients. Our HF unit is manufactured in sync with the international quality standards using outstanding grade raw materials.
Features :

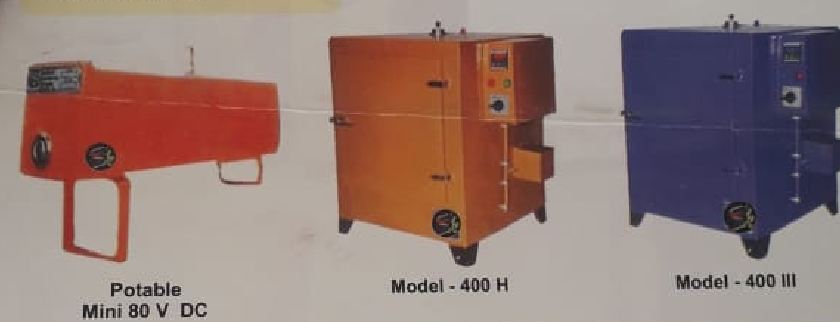

Specification | Model | ||||||
Stationery 300M | Stationery 300H | Stationery 400M | Stationery 400III | Stationery 500H | Stationery 500III | Stationery 400DAC | |
Voltage | 200V AC | 200V AC | 220V AC | 220 / 415 V AC | 220V AC | 415V AC | 415V AC |
Temprature | 50°-300° | 50°-300° | 50°-400° | 50°-400° | 50°-500° | 50°-500° | 50°-400° |
Thermostat | Manual | Digital | Digital | Digital | Digital | Digital | Digital |
Phase | Single | Single | Single | Single/3 | Single | Single/3 | 3 |
Working space (approx) | 400X400X90MM | 470X465X500MM | 470X465X500MM | 470X465X500MM | --- | --- | --- |
Shelves | 5 | 5/6 | 5/6 | 5/6 | 5/6 | 5/6 | 24 |
Air Circulation | Natural Convection | Natural Convection | Natural Convection | Natural Convection | Natural Convection | Forced Air | Forced Air |
Capacity | 35Kg of electrodes | 50Kg of electrodes | 50Kg of electrodes | 50-100Kg of electFlux | 50Kg of electrodes | 50Kg of electFlux | 100Kg of electrodes |

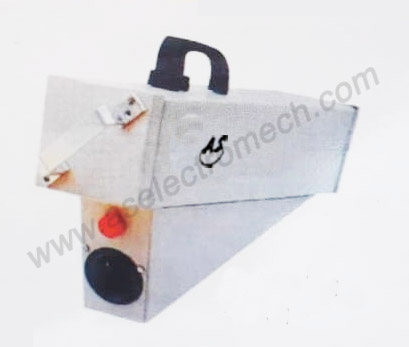

Specification | Portable 80V DC | Portable Mini 220V AC | Portable Max 220V AC |
---|---|---|---|
Voltage | 80V AC | 220V AC | 220V AC |
Working Space (approx) | 57 Dia x 418 Depth | 100 x 100 x 418 Depth | 80 Dia x 145 Depth |
Temprature | 150°C - 200°C | 150°C - 200°C | 50°C - 300°C |
Capacity | 3 -5 Kg | 3 -5 Kg | 3 -5 Kg |
Air Circulation | Natural Convection | Natural Convection | Natural Convection |

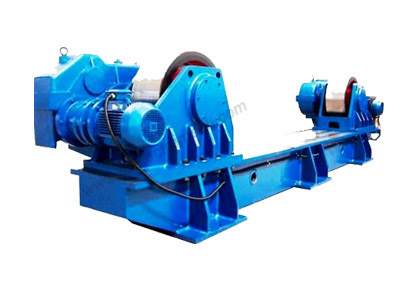

Model | Load Capacity(mm) | Center distance(mm) | Roller diameter(mm) | Roller width(mm) | Workpiece diameter | |
---|---|---|---|---|---|---|
ASW-5T | 5T | 1030 | 260 | 120 | 2500 | 300 |
ASW-10T | 10T | 1070 | 308 | 170 | 3000 | 350 |
ASW-20T | 20T | 1180 | 308 | 200 | 3500 | 400 |
ASW-30T | 30T | 1270 | 308 | 220 | 4000 | 500 |
ASW-40T | 40T | 1600 | 425 | 220 | 4200 | 600 |
ASW-50T | 50T | 1700 | 425 | 220 | 4600 | 700 |
ASW-60T | 60T | 1750 | 425 | 240 | 4800 | 800 |
ASW-80T | 80T | 1900 | 425 | 240 | 5000 | 900 |
ASW-100T | 100T | 2200 | 500 | 240 | 5500 | 1000 |
ASW-120T | 120T | 2500 | 600 | 300 | 6000 | 1200 |
ASW-120T | 120T | 2500 | 600(Steel) | 220 | 6000 | 1200 |
ASW-150T | 150T | 2700 | 600(Steel) | 300 | 6500 | 1200 |
Model | Load Capacity(mm) | Roller diameter(mm) | Roller width(mm) | Workpiece diameter(mm) | |
---|---|---|---|---|---|
ASW-2 | 2 | 260 | 120 | 200-2000 | |
ASW-5 | 5 | 308 | 120 | 200-2500 | |
ASW-10 | 10 | 308 | 170 | 300-3000 | |
ASW-20 | 20 | 360 | 180 | 300-3500 | |
ASW-30 | 30 | 425 | 220 | 300-4000 | |
ASW-40 | 40 | 425 | 220 | 300-4500 | |
ASW-50 | 50 | 425 | 240 | 400-4500 | |
ASW-60 | 60 | 500 | 240 | 600-5000 | |
ASW-80 | 80 | 580 | 260 | 800-5500 | |
ASW-100 | 100 | 580 | 280 | 1000-6000 | |
ASW-120 | 120 | 600 | 200 | 1000-6500 | |
ASW-150 | 150 | 600 | 220 | 1100-7000 | |
ASW-200 | 200 | 700 | 260 | 1200-7800 | |
ASW-300 | 300 | 800 | 300 | 1500-8500 |

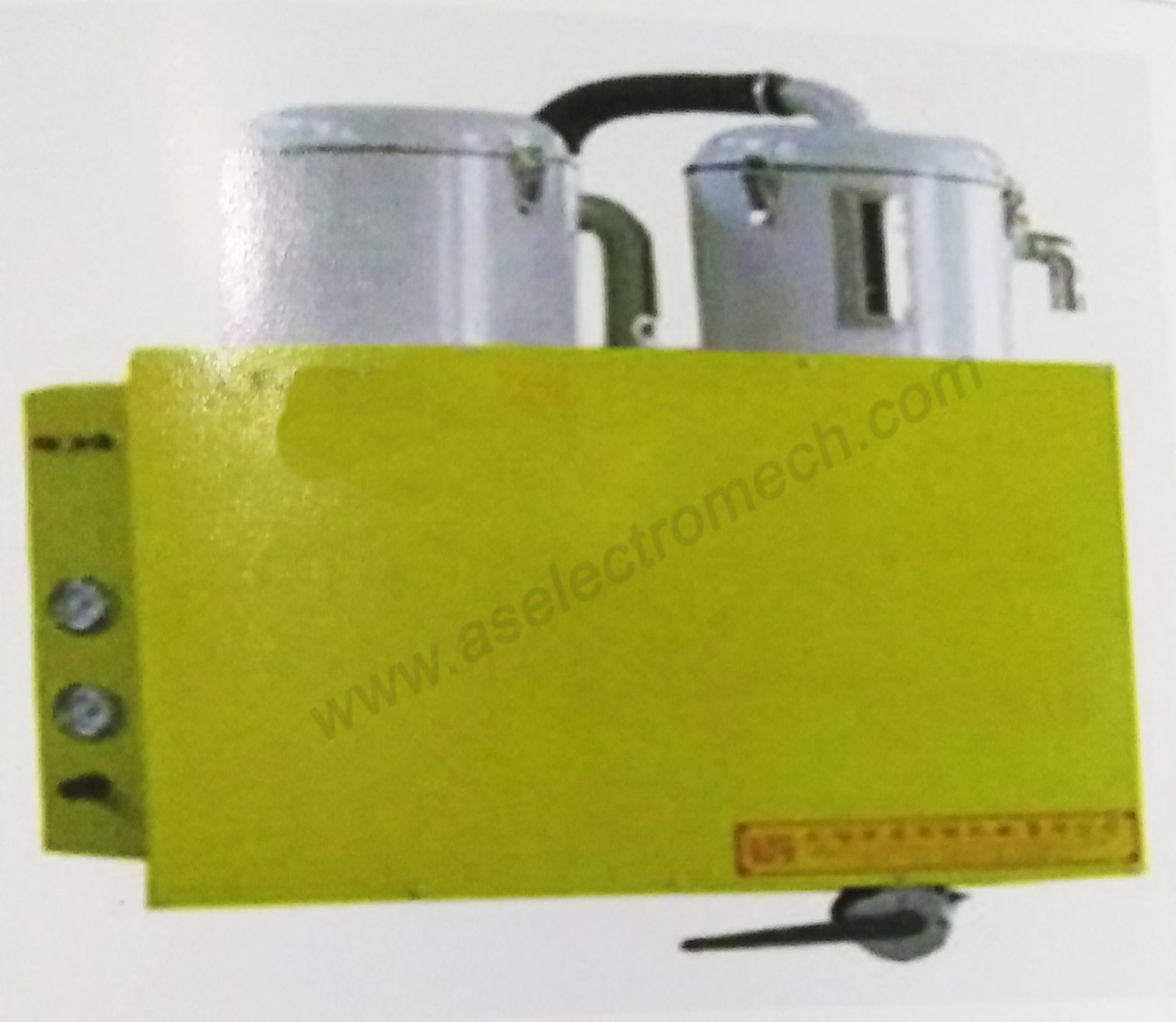

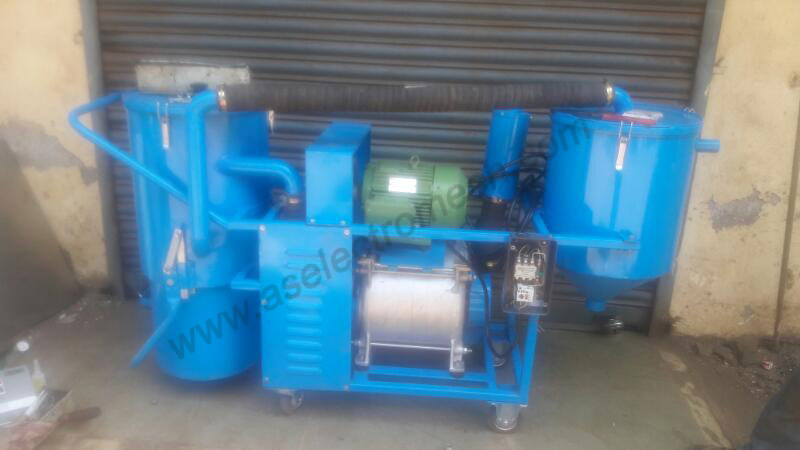

This system is specially designed for welding beam. It applies the imported air pump assembly which absorbs the welding flux into the inside of aggregate tube and then placed into the feed mechanism by external gas source by manual or automated control.
Then it transports the flux directly into the small hopper and then put the flux into the workpiece ensuring the welding process which realizes the flux recovery and feeding.
We A S Electromech Technology have gained expertise in domain by offering a wide assortment of Safety Gloves. These safety gloves offered by us are made using superior grade fabrics, sourced from the trustworthy vendors of the market. This range is applicable for foundries, steel mills, casting shops, heat treating operations and welding shops
We are a remarkable entity in this domain, engaged in offering a qualitative assortment of Safety Gloves. The offered products are suitable while working in industry and known for having fine grip. Along with this, the offered range is checked on different parameters to ensure its adherence with the international quality norms and standards.

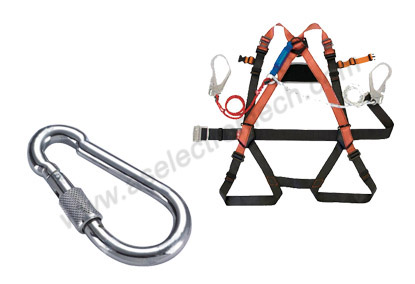

Being a client focused business name; we A S Electromech Technology are readily occupied in offering a comprehensive consignment of Safety Belt Hook.
We are counted amongst the reputed name engaged in offering an exclusive range of Safety Belts & Hooks.
Features :

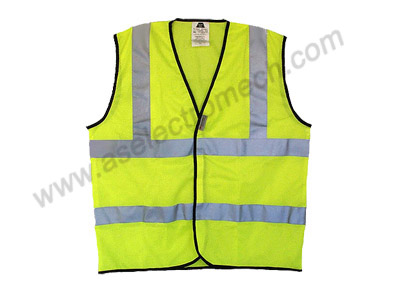

These safety jackets are used in various safety applications, these safety jackets are designed by our experts by consuming basic material and newfangled machinery. Safety jackets are made from Reflective Fabrics, yarns etc and decorated with reflective tapes. The offered safety jackets clothes are proved at nominal rates to our customers.
Before their finishing transmits, the offered safety jackets are well tested on quality provisions in order to assure that these are made according to tit he market norms. As a result the industry personnel remain visible to drivers and bikers during night, fog and other conditions, thereby preventing risks in their jobs.

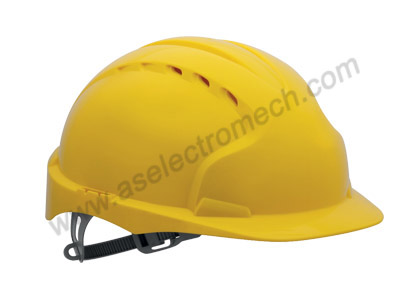

Our safety helmets with the primary function is to protect the wearers head from falling objects are made up of tough Polyethylene and are also light weight for user's convenience. These helmets accommodate a range of head sizes with hearing protection, providing hearing protection and face protection in extreme industrial environments.
These comply with the universal standards of safety & quality and are carefully designed for user's comfort. The external form of a smooth, free flowing outer shell surface, reflects ergonomic considerations of being well balanced, light weight and also incorporates excellent peripheral vision.

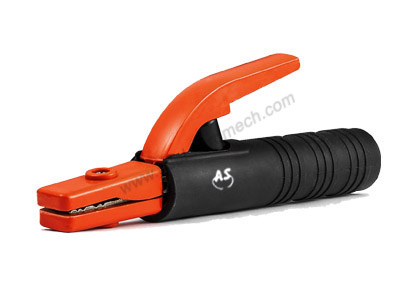

Welding Electrode Holders are suitable for manual metal arc welding with covered electrodes of length not more than 45omm. Welding holders are fitted with special alloys jaws which have more thermal conductivity than copper resulting in less heating problems during welding processes and hence greater life.
Features :

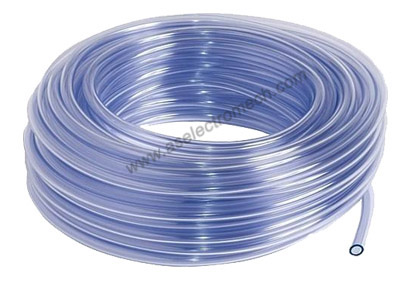

We A S Electromech Technology are one of the leading manufacturer, exporter & trader of Hose Pipe to meet the quality standards as per the customer demand. We design the given product following industrial standards by making use of best quality material and modern technology.
This range is manufactured in tandem with set industry standards and is available in different sizes, lengths and end fitting configurations. We test this range on several quality parameters and deliver it within committed time frame.
Features :

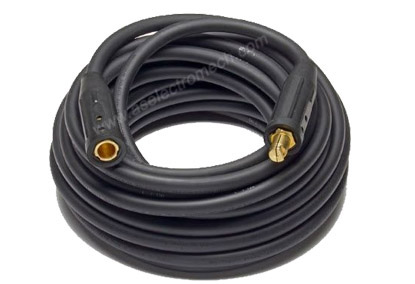

Welding Machine (Copper Conductor) | ||||
Current Rating Duty Cycle | ||||
Nominal Area of Conductor | Number/ Diameters of Wires in mm | Thickness of covering in mm | TRS / General (20%) | HOFR(30%) |
16 sp.mm | 510/0.20 mm | 2.00 mm | 210AMPS | 246AMPS |
25 sp.mm | 796/0.20 mm | 2.00 mm | 279AMPS | 343AMPS |
35 sp.mm | 1114/0.20 mm | 2.00 mm | 349AMPS | 403AMPS |
50 sp.mm | 707/0.30 mm of 1591/0.20 mm | 2.20 mm | 440AMPS | 509AMPS |
70 sp.mm | 707/0.30 mm of 1591/0.20 mm | 2.40 mm | 555AMPS | 643AMPS |
95 sp.mm | 1133/0.30 mm | 2.60 mm | 669AMPS | 774AMPS |
